Icon, reborn.
High-End starts at the bridge.
Choose FlowTrem 2 and finalize the core of your instrument—where tone starts and playability lives.
High-end material
Grade-5 titanium in the core hardware for maximum stiffness-to-weight, corrosion resistance, and consistently stable tone.
Precision machining
CNC-milled from solid billets for tight tolerances, perfectly planar contact faces, and a repeatable, drop-in fit.
Advanced finish
Diamond-like carbon on high-wear parts for extreme wear life and a durable, premium appearance.

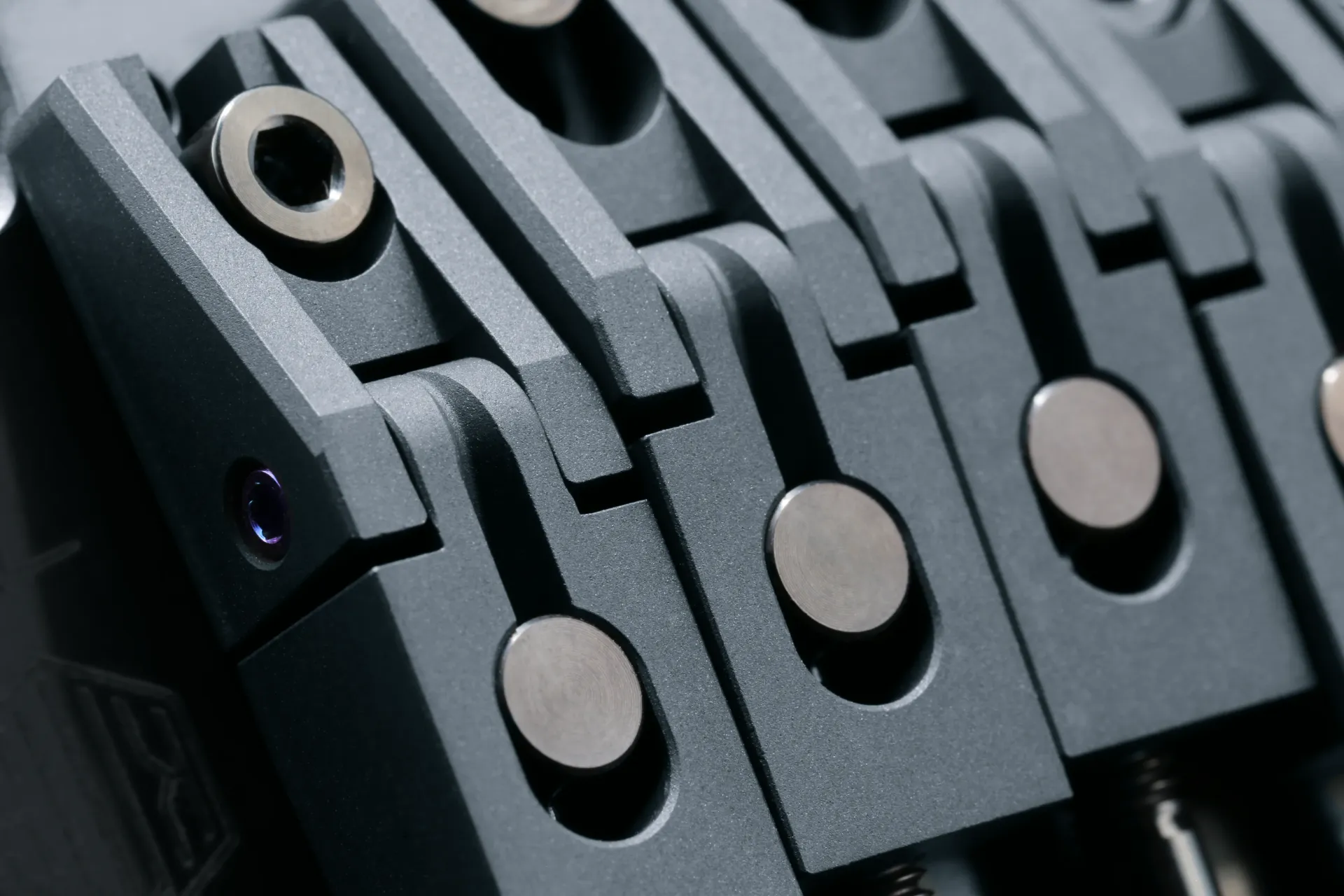

Next-Gen Saddles.
Auto-height by gauge for controlled amplitude and clarity.
Established V-notch profile (as on TV-Rails / JAM / ONE V) for self-leveling string height. Specially cut V-grooves seat all common gauges tightly for efficient energy transfer; giving each string a precise, secure seat and minimizing loss at the contact point for greater sustain and clear definition.
Re-engineered saddle bodies.

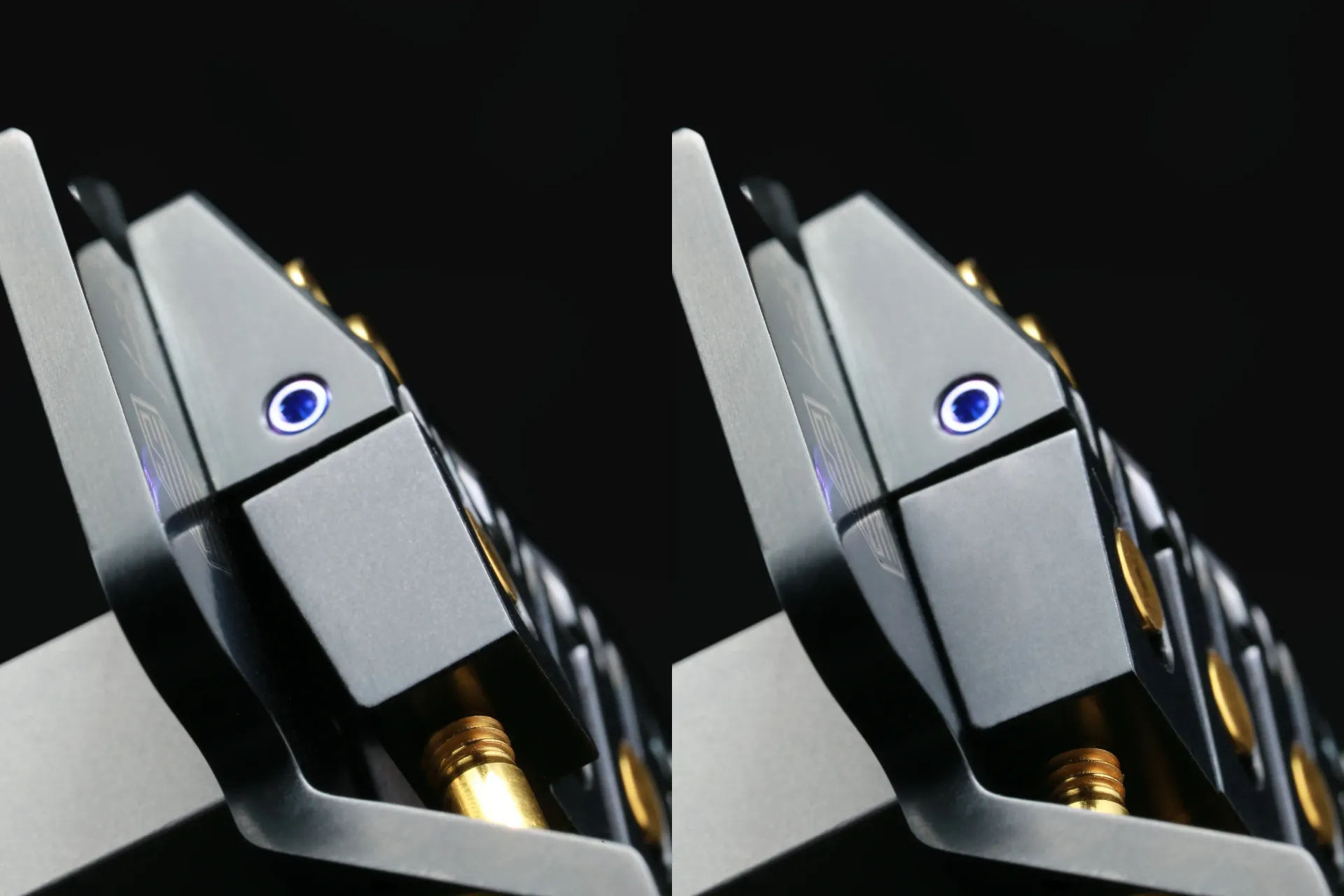

Re-engineered saddle bodies: shorter overall length for greater rearward intonation range; chamfered undersides for later deck contact and clearance when fine-tuners run deep, expanding the micro-tuning range.

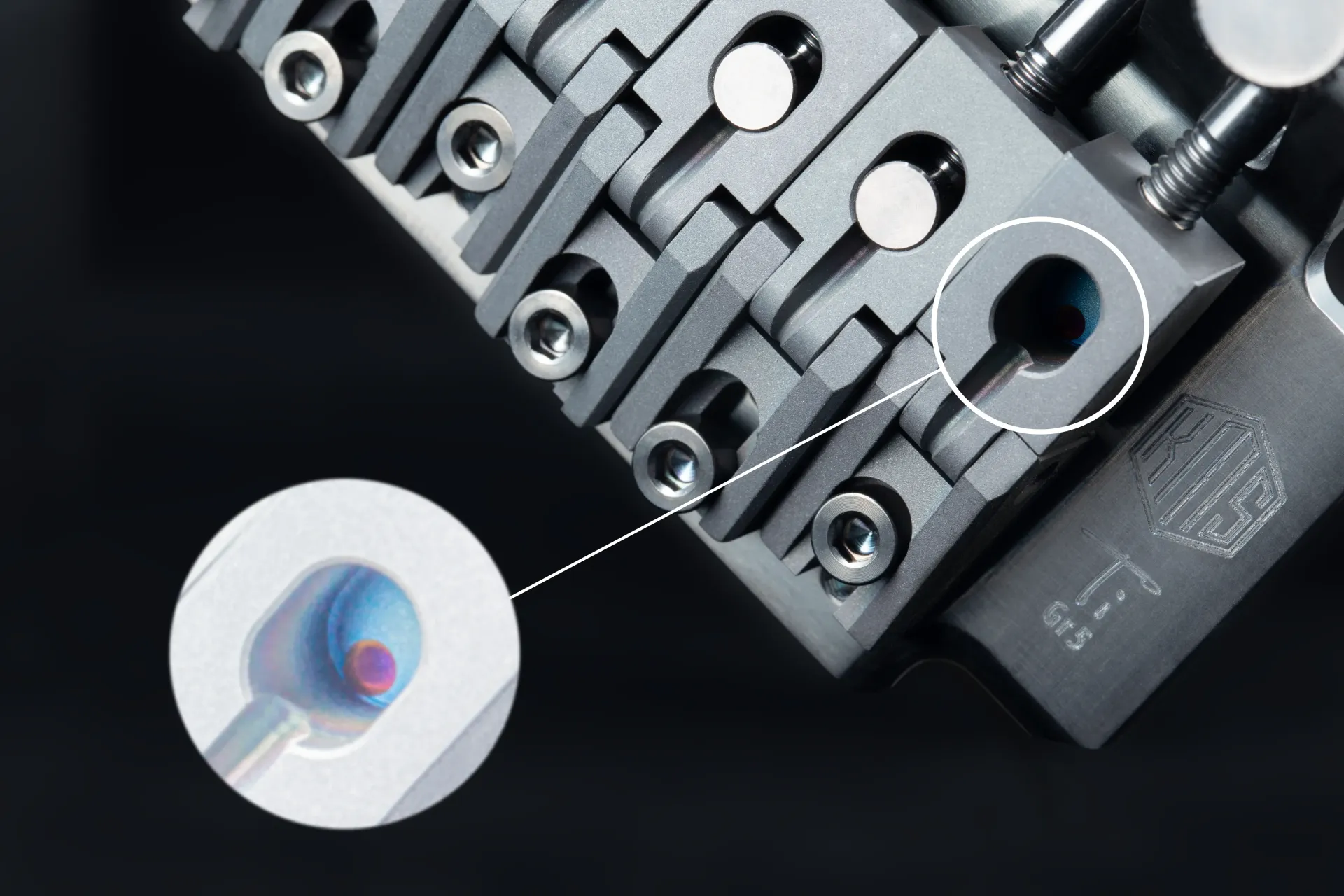

Re-profiled clamp openings
Bottom feed-in holes for more precise stringing and repeatable alignment; cleaner string breakpoint with improved pressure distribution and fewer micro-burrs.

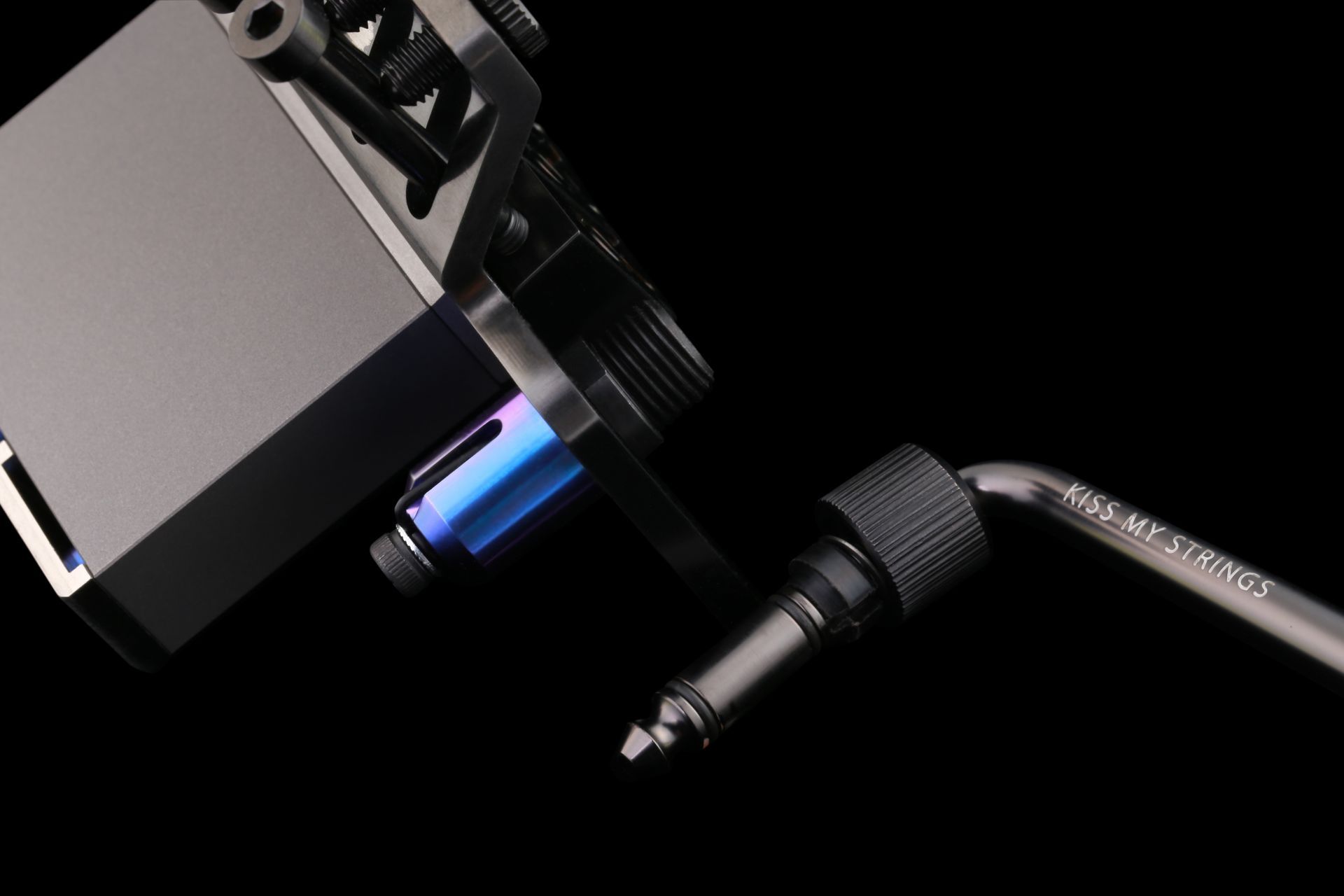

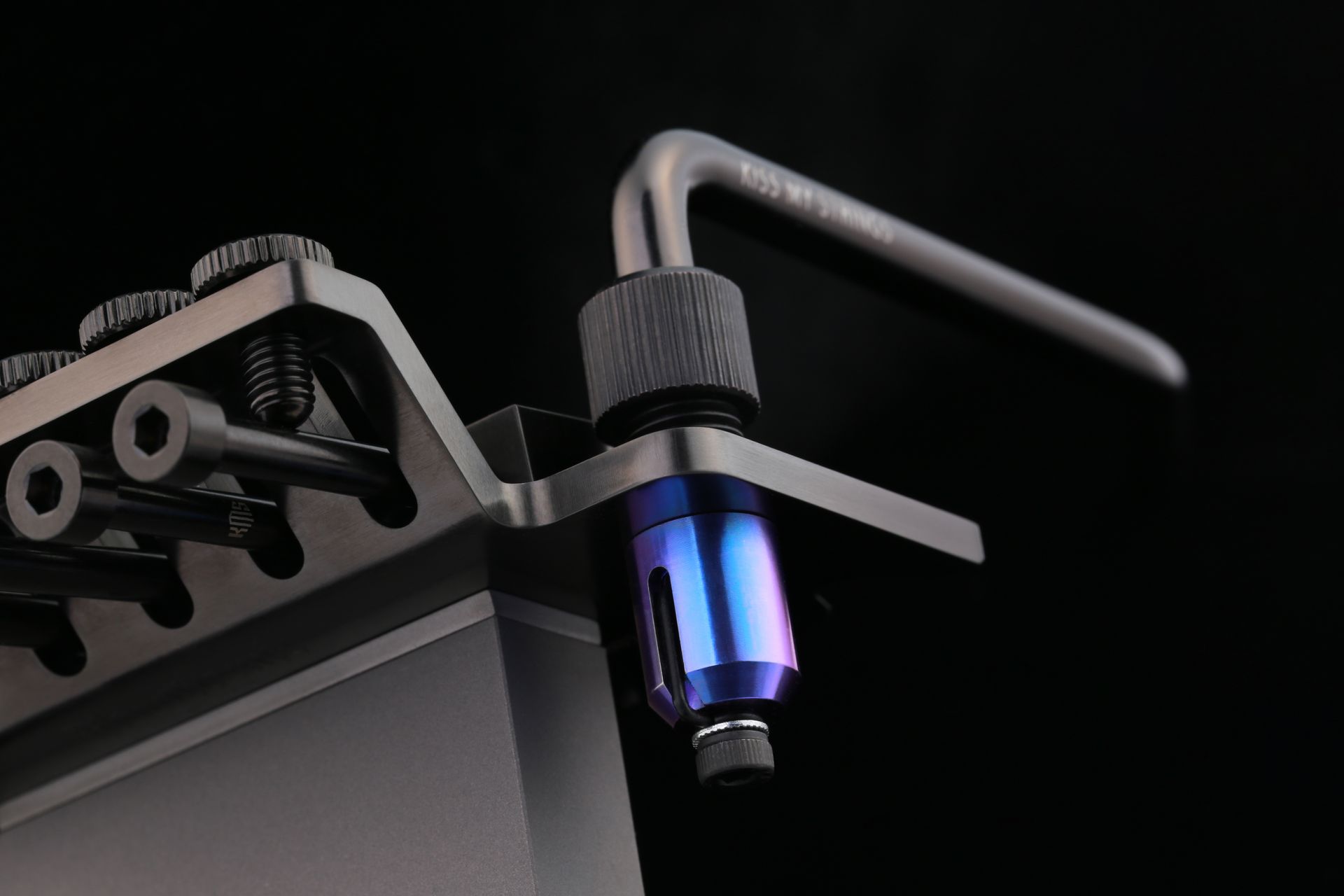

OmniPort-10 — Universal Arm Coupling.

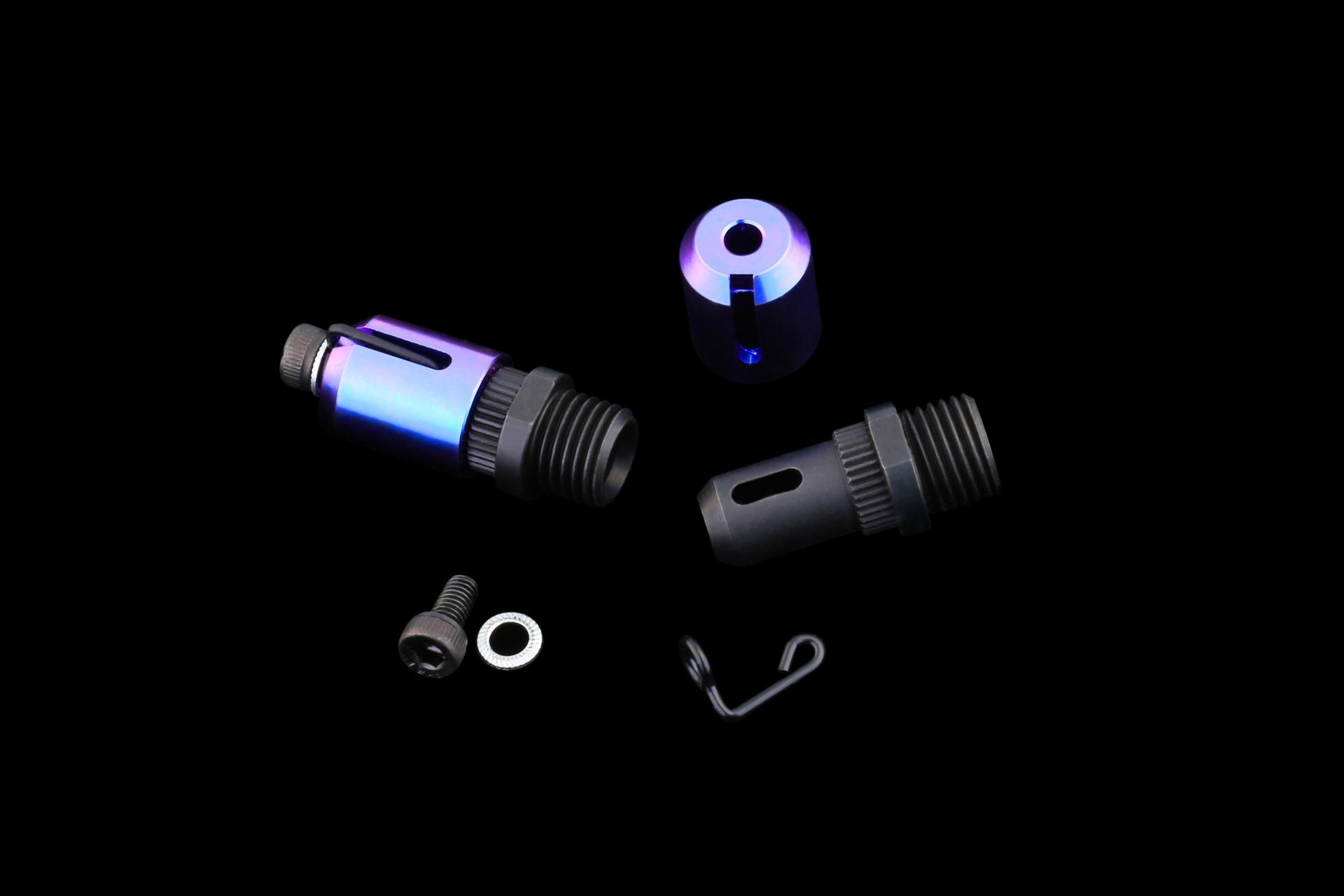

OmniPort-10 — universal 10 mm arm socket.
Precision-bored hardened-steel sleeve with M9 top thread (FR-style) and Clip-Lock base—delivering a tight, rattle-free arm feel and lasting durability.
Drop-in, clean integration
Fits any 10 mm base-plate bore; Snap-Seat click-in and M9 tension-collar thread. Accepts common 6 mm bars (Original Floyd Rose, Ibanez, etc. when your FlowBar isn’t at hand.
Locking, adjustable, rattle-free
Snap-Seat for positive click-in, Clip-Lock (adjusted via the tension collar) to set resistance, and fit O-rings for a wobble-free feel — replaceable, with material options available.

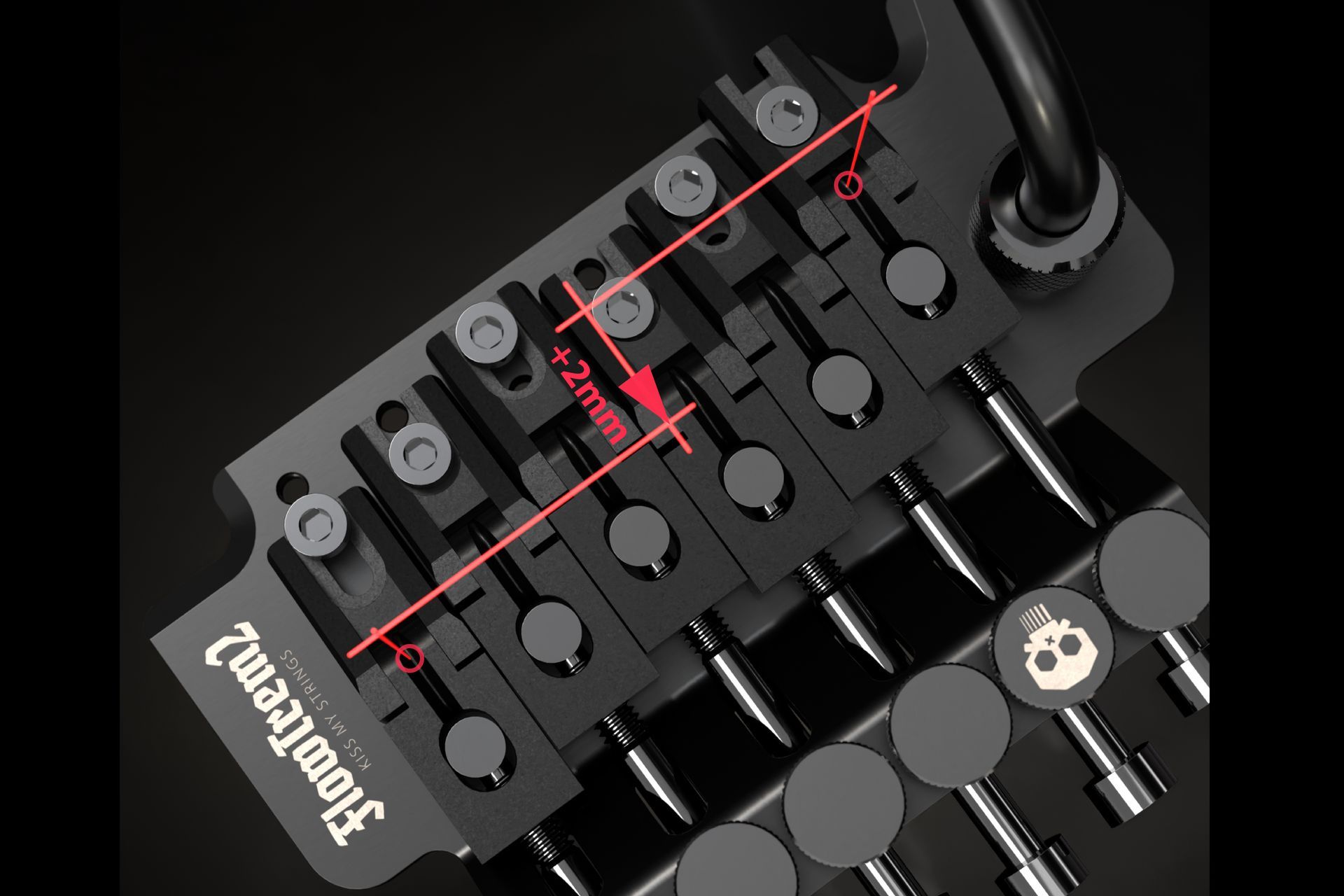

Geometry that unlocks more intonation range.
Intonation-range +2 mm
Compared to a Floyd Rose Original, FlowTrem gives you +2 mm of extra saddle travel. That small number is huge in real setups - especially for drop tunings, thicker strings, and mixed string sets.

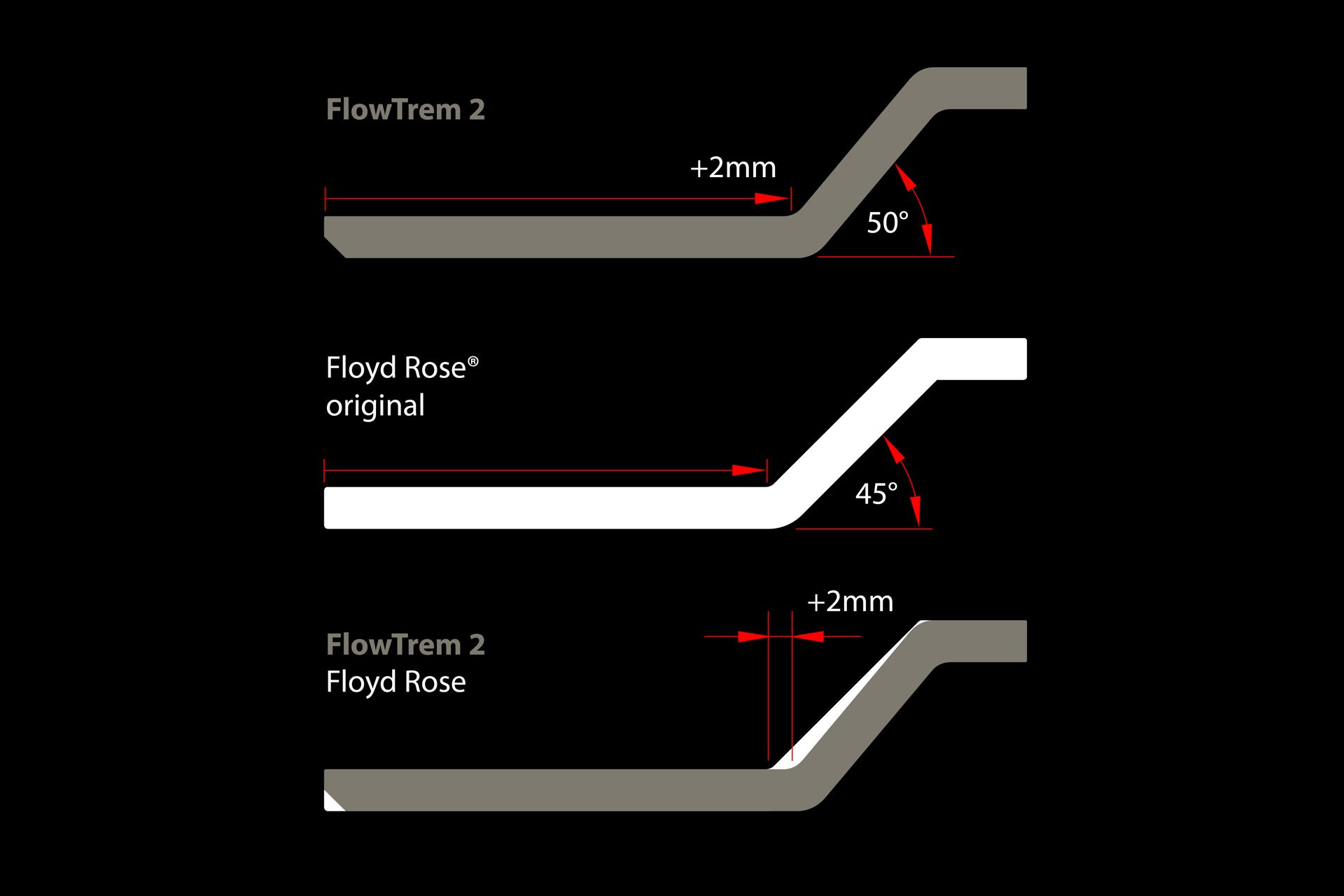

Re-positioned bend, same footprint
FlowTrem shifts the baseplate bend 2 mm further back to create more usable intonation travel. To keep the fine-tuner position and outer geometry consistent, the bend angle becomes steeper: 50 deg vs 45 deg.
More travel where it matters

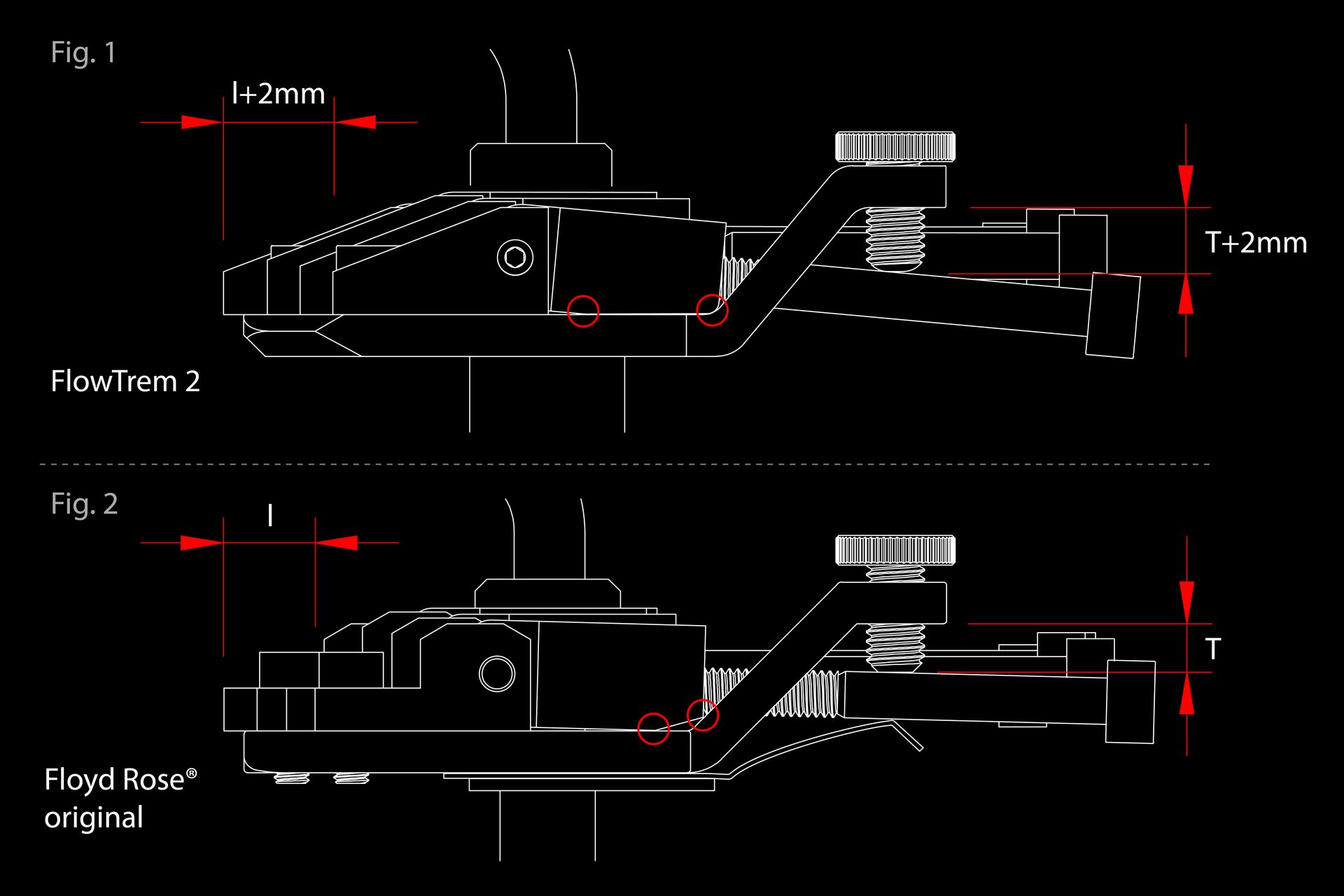

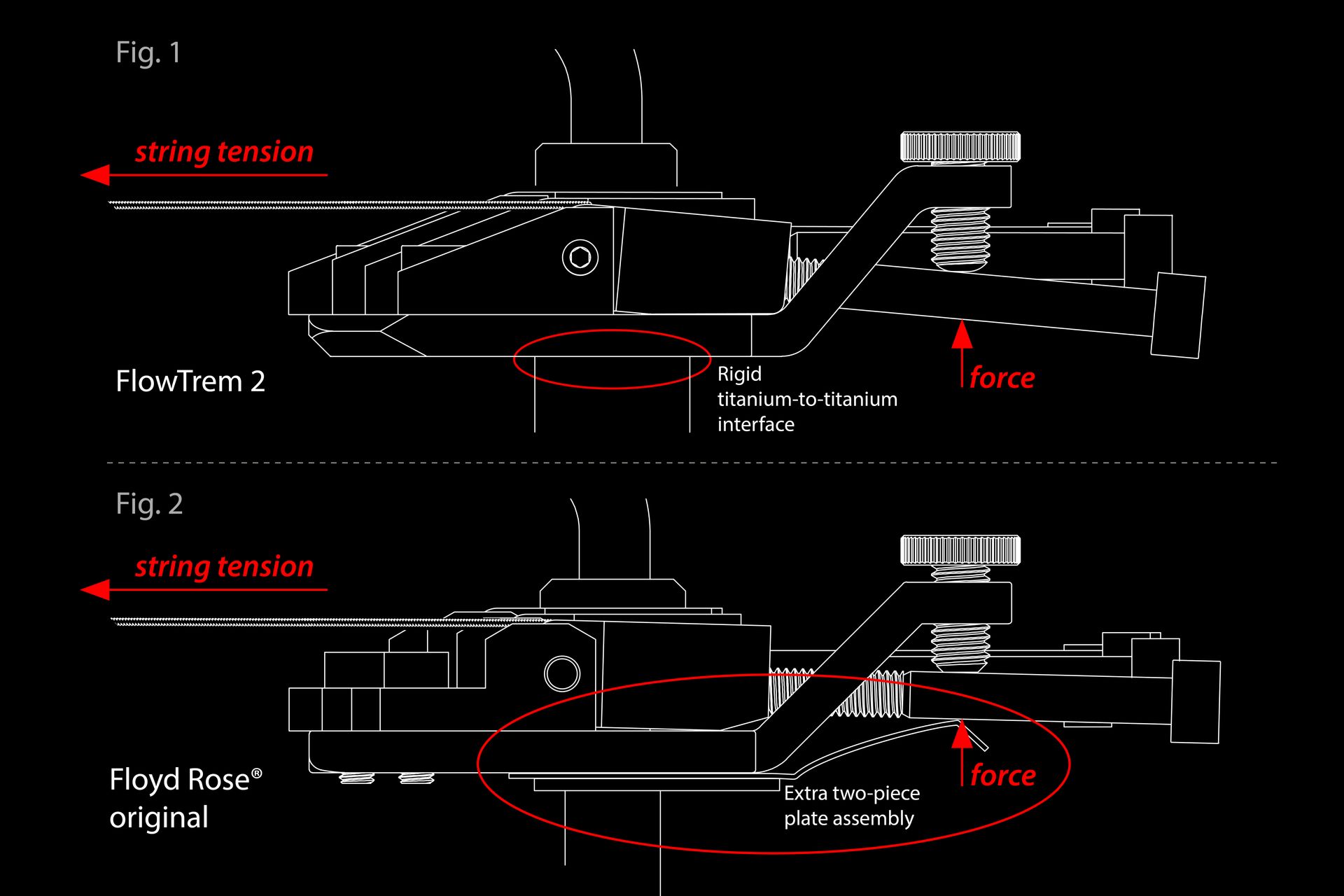

Side-by-side, you can clearly see the extended intonation (I) adjustment on FlowTrem 2 (Fig. 1) versus the Floyd Rose Original (Fig. 2). You also gain extra fine-tuner (T) adjustment range thanks to the bottom-chamfered saddles, which can be screwed further down.
