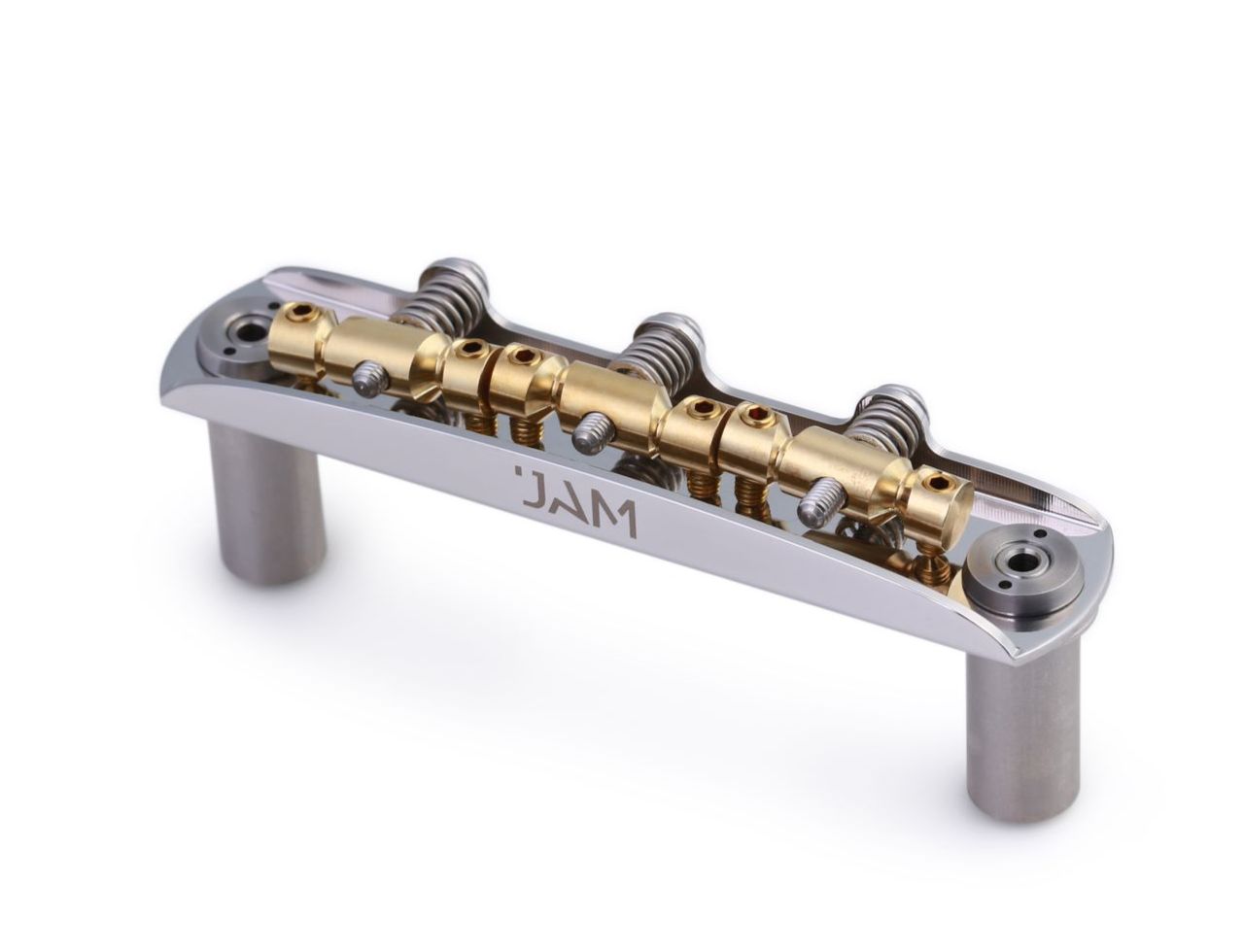

JAM Classic — 2026 Version

Minimal-mass offset bridge with uncoated V-Rail® brass saddles for maximum touch, openness, and color.

Immediate attack and open, airy dynamics via direct acoustic coupling, with precise control and wide radius adjustment; CNC-machined from solid stainless steel and brass.

JAM Classic – who it’s for
Players prioritizing pure tone on fixed or non-gliding setups (e.g., offset builds without vibrato travel across the saddles).

Quick features

• Custom locking mechanism for secure bridge fixation
• V-Rail® brass saddles with compensated grooves for all string gauges
• Widely adjustable radius(7.25"–20", 12" preset)
• Precise left/right alignment of overall string position
• Bridge base milled from a solid block
• Bare brass for direct string-to-saddle contact

---

Sound characteristics

• Open, airy, highly responsive
• Immediate attack with articulate highs
• Lively harmonic bloom with natural warmth
• Clear separation and wide dynamic range

---

Performance & tuning stability

• Positive bridge lock prevents drift and micro-rattle
• V-Rail® saddles: tight, safe string contact
• Radius adjustable from 7.25" to 20" for perfect board matching

---

Materials & finishes

• Bridge base: Stainless steel, milled from solid (brushed or polished finish)
• Saddles: V-Rail® brass, uncoated
• Saddle height screws: Brass
• Mounting assembly (two-hole nut, bridge posts, bushings): Precision-turned stainless steel
• Bridge height screws: Brass

New for 2025

• Intonation screws: Stainless steel with clear anti-rattle polymer – no vibration noise at any setup; smooth, precise adjustment
• Springs: Industrial-grade spring steel with adjusted lengths and reinforcement

---

Specs (Facts & Figures)

• Body size: 86 × 19 × 10 mm (L × W × H)
• Post spacing: 73.0 mm (elongated slot allows 72.6–73.4 mm)
• String spacing (e–E): 52.0 mm(10.4 mm between strings)
• Fretboard radius: 7.25"–20"(preset 12")
• Bushings (outer Ø): 9.0 mm(most import models) · 9.5 mm(US models) · Dual Pack(both sizes)
• Weight:~ 62 g

---

Reproducibility guaranteed

All parts are precision CNC-machined from purpose-selected, custom-spec materials for:

• Top dimensional accuracy
• Perfect planar contact surfaces
• Dense, non-porous structure (no air-inclusion artifacts)

---

Aged overnight (optional)

CRYO-treated (overnight deep-cooling) to relieve residual manufacturing stresses, aiming for a more vintage-like, settled tone and “played-in” feel.
