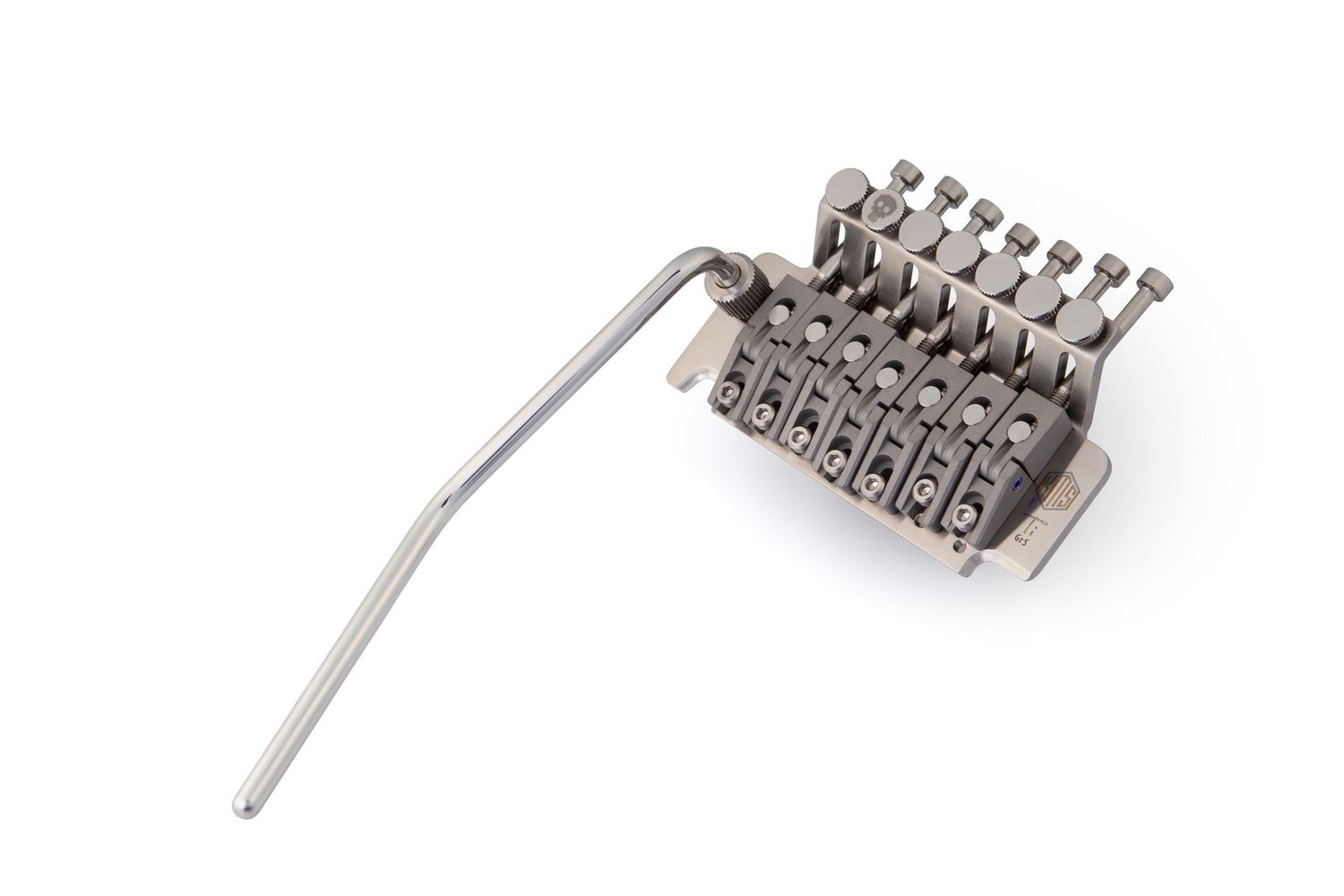

FlowTrem-2 (7-String)

High-performance double-locking tremolo. Unmatched control in the Floyd-Rose class: rock-solid tuning under heavy use, quiet mechanics, and a focused, transparent voice — CNC-machined entirely from Grade-5 titanium.

Who is it for? Touring players, precision setups, and anyone who wants silent hardware, repeatable feel, and maximum stability under aggressive vibrato work.

High-end starts at the bridge. This is where tone is born and control is defined.

Features & updates

New saddles (V-groove): established V-notch profile (as on TV-Rails / JAM / ONE V) for self-leveling string height and.
Re-engineered saddle bodies: shorter overall length for more rearward intonation range; chamfered undersides; re-profiled clamp openings with bottom feed-in holes; cleaner string breakpoint.
Baseplate, re-profiled: outer dimensions for maximum swap-compatibility and uniform fit; steeper ramp toward the fine-tuner plane → longer saddle deck and more pull-back room(drop tunings); Chamfered front edge: prevents body contact during extreme dive-bombs for unhindered travel
No spring plate: eliminates an extra steel part that adds vibration paths and micro-noise, preserving the continuous all-titanium structure.
Monolith+2 (Grade-5 Ti) block: 30 or 35 mm; fine-tuning via +2 mm shims(up to +4 mm total).
OmniPort-10/6 arm interface: accepts FlowBar trem arm and almost all common 6 mm whammy bars (Floyd Rose, Gotoh, Ibanez, Magic Arm...)
FlowBar trem arm: locking, rattle-free, tension-adjustable; fit O-rings; Snap-Seat click-in; Clip-Lock drag.
Titanium knife-edges (clean): uncoated for precise, consistent pivot and feel.
and more...

Sound characteristics

Focused attack with controlled overtones
Long, even sustain
Excellent note separation under gain

Performance & tuning stability

Snap-Seat + Clip-Lock: precise arm feel, rattle-free operation, repeatable drag
Titanium knife-edges (clean): consistent pivot feel and reliable return-to-pitch under heavy use
Monolith+2 Ti block: tighter, more immediate response with long, even sustain
All-titanium load path: high torsional stiffness and a continuous material structure for efficient energy transfer

No spring plate: avoids added vibration paths and micro-noise; preserves the continuous titanium structure

Materials & finishes

Natural — titanium hardware with a satin, technical aesthetic
Black — PVD on Ti/steel for a refined dark finish
Gold — TiN (PVD) for a premium, corrosion-resistant look
Carbon — DLC (Diamond like Carbon) on saddles, baseplate and OmniPort sleeve for extreme wear resistance

Core materials: Grade-5 titanium throughout (baseplate, saddles, block, key hardware); OmniPort sleeve in hardened steel; FlowBar arms in stainless (with click) and Grade-2 titanium (non-click).

Compatibility

Drop-in for Floyd Rose–type 7-string
OmniPort-10/6 accepts common 6 mm arms —handy if you need to borrow a bar on short notice or use from an other brand.

Stud options (mounting)

Two-piece bushings with studs — body bore 10 mm (modern standard since late ’80s)
One-piece wood studs — screw directly into wood (requires adequately hard body wood)

Specs (Facts & Figures)

Blocks: 30 / 35 mm; includes +2 mm shim(up to +4 mm total)
- 30 → 32 / 34 mm (with one/two shims)
- 35 → 37 / 39 mm (with one/two shims)
- 42 mm top-loader version (no spring-retainer clip)
Arm system: FlowBar (locking, rattle-free, adjustable); replaceable fit O-rings; Snap-Seat click-in; Clip-Lock drag
Arm compatibility: accepts common 6 mm bars via OmniPort-10/6
Mounting studs: two-piece bushings (10 mm) or one-piece wood studs
Materials: Grade-5 titanium (core); hardened-steel OmniPort sleeve; FlowBar in stainless (click) & Ti Gr2 (non-click)

In the box

FlowTrem 2 assembly
FlowBar arms: 1× stainless (with click) and 1× titanium Gr2 (without click)
Spring Claw(titanium) with integrated ground screw
Silent Springs(3 pcs)
Tools: hex keys 1.5 / 2.5 / 3.0 mm and 10 mm open-end wrench
Shim:+2 mm (option to add a second +2 mm shim on order page)
Short locking screws(set) for deep rearward intonation travel

About the spring plate (why we omit it)

All systems use a thin steel spring plate to push locking screws up against the fine-tuner undersides. This is only helpful when re-stringing (to hold a saddle from moving) and can be replicated on FlowTrem 2 by simply lowering the fine-tuners fully during string changes.
Downside: the extra steel part adds vibration paths and micro-noise and breaks the titanium-through structure of FlowTrem 2.
Result: We omit the spring plate by design. (If you insist, we can offer one as an optional accessory —not recommended.)

Reproducibility guaranteed

All parts are precision CNC-machined from custom-spec materials for top dimensional accuracy, perfectly planar contact surfaces, and a dense, non-porous structure.

FlowTrem-2 (7-string)
