Fine-Tuner Spring Plate Support Shim — 7-String — Carbon Black PVD

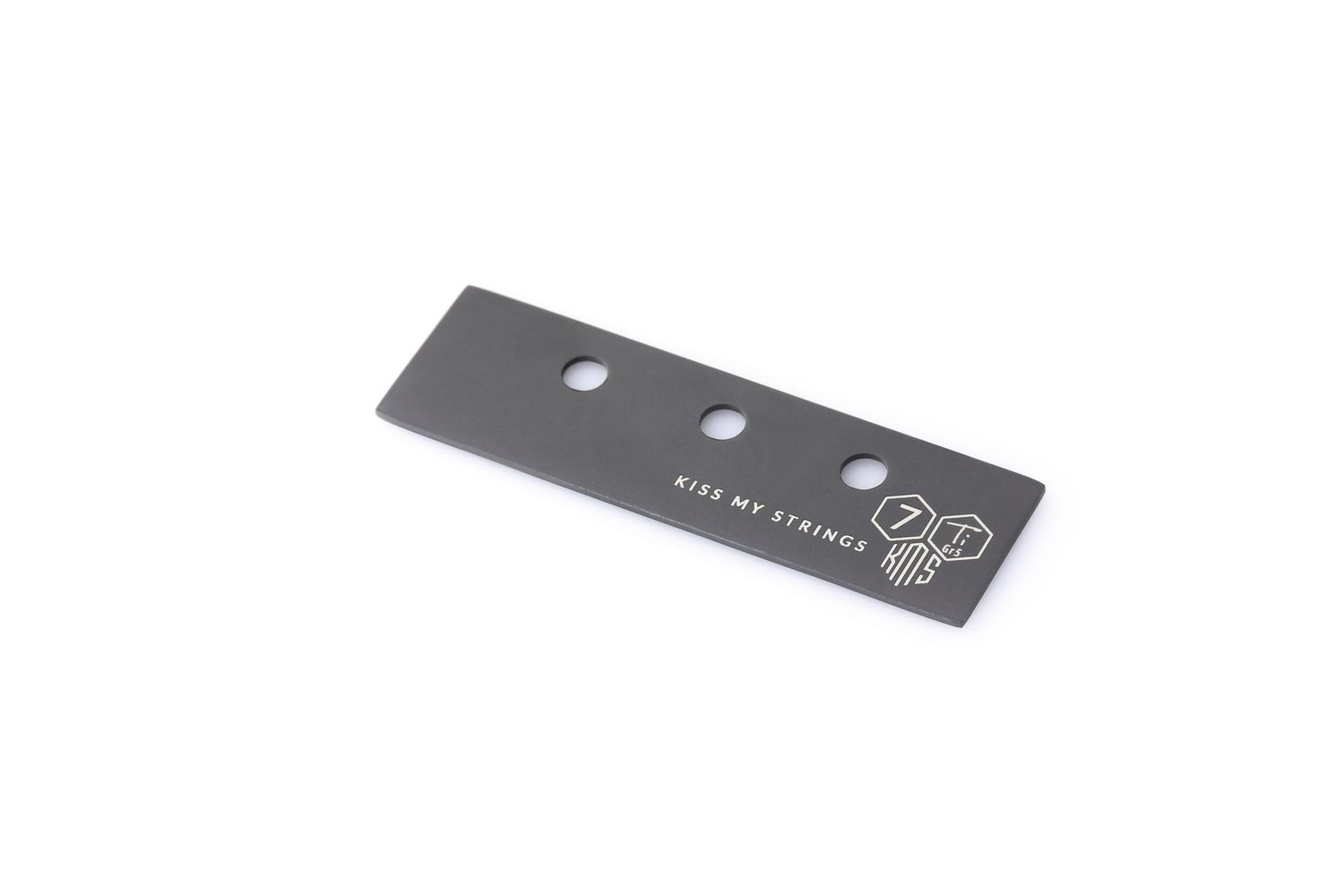

A 1.0 mm Grade 5 titanium support sheet installed beneath a conventional 7-string fine-tuner spring / tension plate. It provides a defined support surface without replacing the original spring plate or changing its operating principle.

Specifications

• Ti-6Al-4V (Grade 5) titanium
• Dimensions: 21 × 71.2 × 1.0 mm
• 3 × Ø5 mm openings
• 17 mm adjacent hole-center spacing
• 18.6 mm end-to-nearest-hole-center spacing
• Finish: Carbon Black PVD

Important distinction

This is a fine-tuner spring-plate support shim, not a tremolo-block height spacer and not a replacement for the spring / tension plate.

Compatibility

Match the component type, thread and relevant geometry to the part being replaced. “Floyd Rose-style” describes a system category, not one universal component standard.

Technical guide

• KMS Upgrades for Floyd Rose-Style Tremolos — component selection, compatibility and upgrade architecture

Floyd Rose® and Schaller® are trademarks of their respective owners. Names are used for identification only; no affiliation or endorsement is implied.
