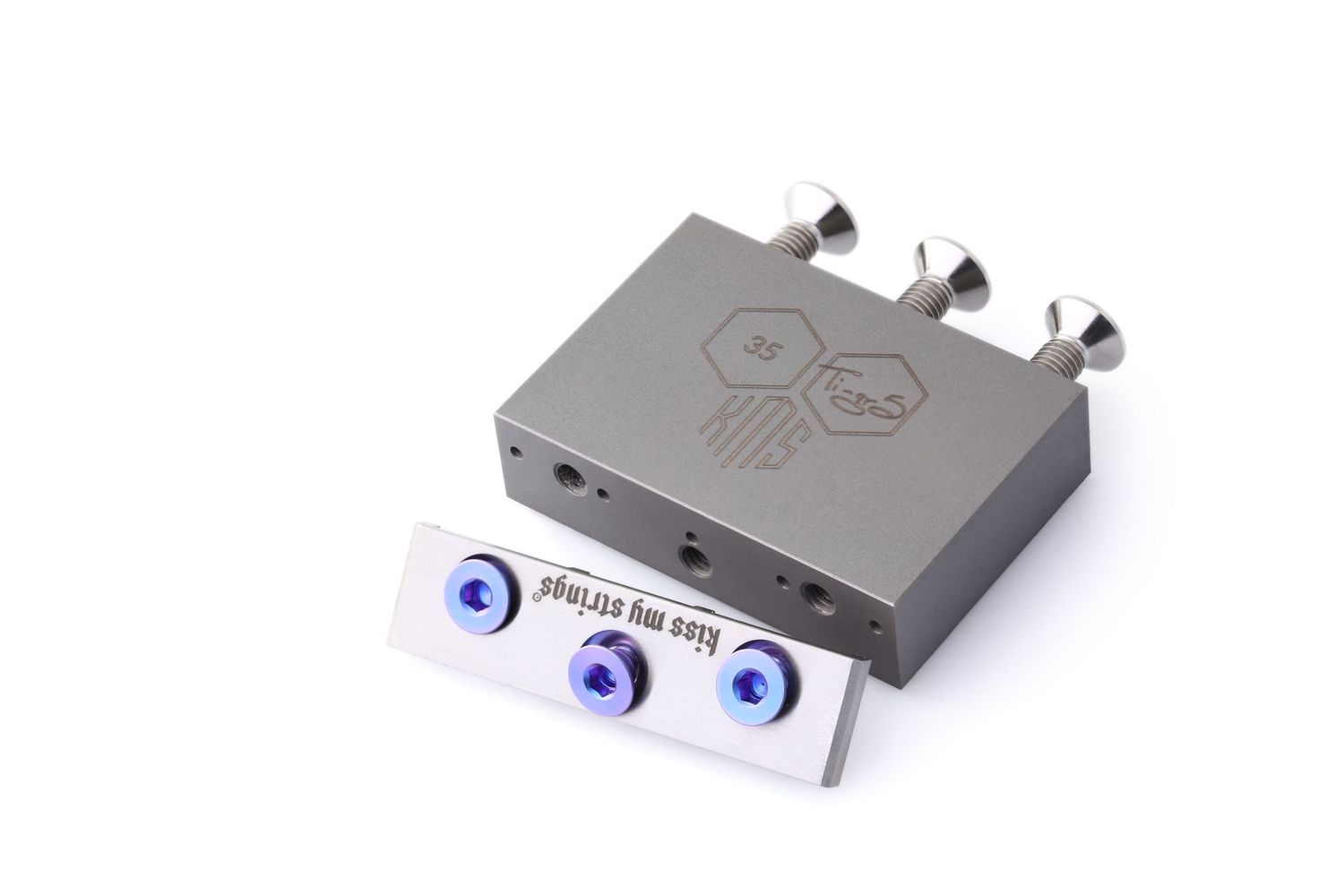

MONOLITH Modular Titanium Tremolo Block — 35 mm Base

The current modular MONOLITH Grade 5 Titanium Tremolo Block — 35 mm Base combines a CNC-machined Ti-6Al-4V base block with purpose-designed 2 mm Height Spacers and the KMS Spring Retainer. It lets the installed block-body length be matched to the guitar without replacing the complete block.

Modular length system

• Base block length: 35 mm
• Available installed block-body lengths: 35 / 37 / 39 mm
• One 2 mm Height Spacer is included
• An optional second 2 mm Height Spacer extends the 37 → 39 mm configuration
• Spring Retainer adds 3.3 mm to the physical overall assembly length; it is not part of the installed block-body length

Material direction

Ti-6Al-4V Grade 5 titanium combines low mass relative to strength with fast response, strong note separation, controlled low end and direct mechanical feedback.

Compatibility

Confirm the tremolo-block mounting pattern, installed depth, spring-cavity clearance, rear-cover clearance and full movement envelope. A conventional block number cannot automatically be transferred to the MONOLITH installed-length system.

Technical guides

• How to Choose the Correct Tremolo Block Height

Floyd Rose® is a trademark of its respective owner. The name is used for identification only; no affiliation or endorsement is implied.
