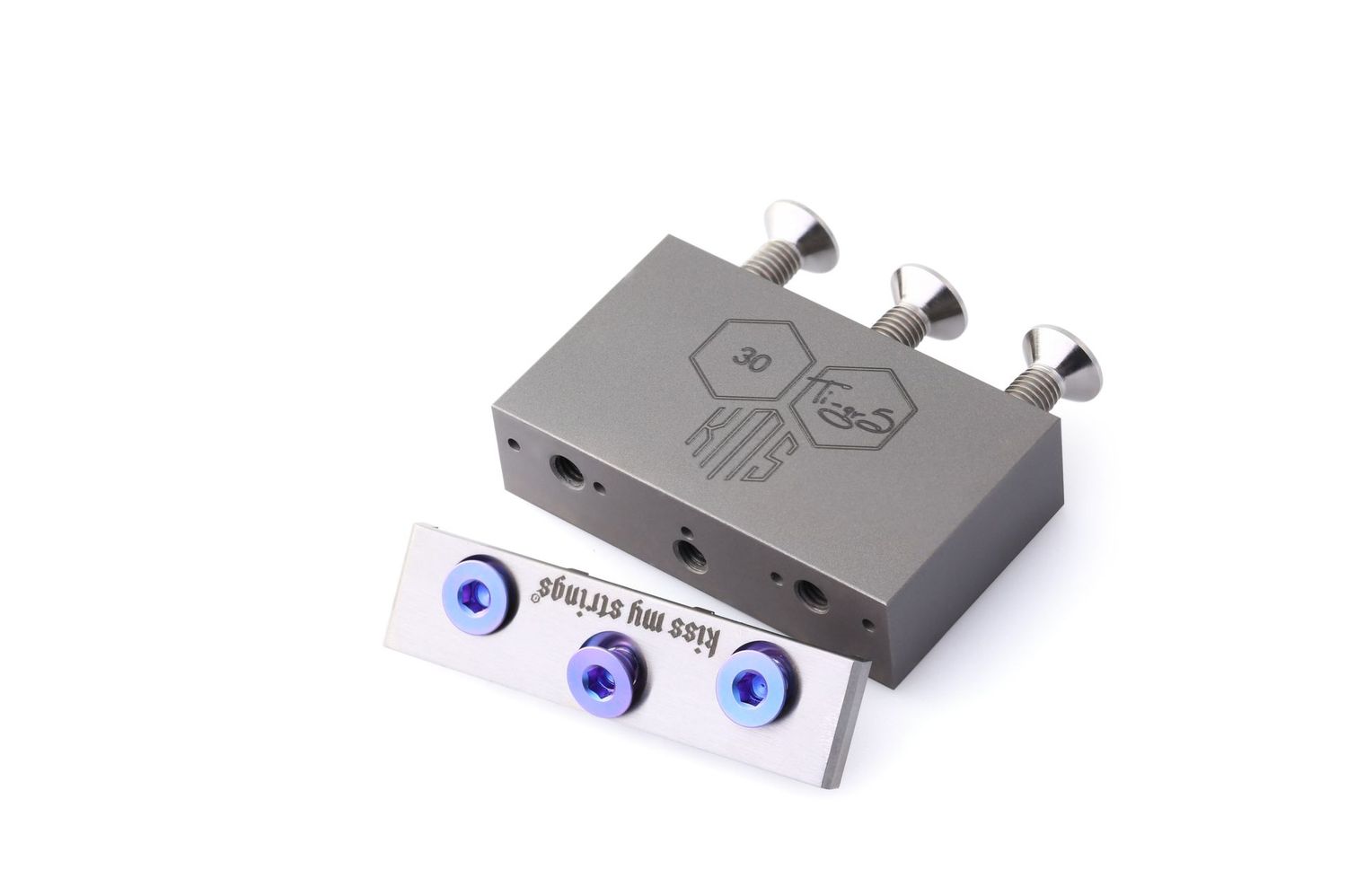

MONOLITH Modular Titanium Tremolo Block — 30 mm Base

The current modular MONOLITH Grade 5 Titanium Tremolo Block — 30 mm Base combines a CNC-machined Ti-6Al-4V base block with purpose-designed 2 mm Height Spacers and the KMS Spring Retainer. It lets the installed block-body length be matched to the guitar without replacing the complete block.

Modular length system

• Base block length: 30 mm
• Available installed block-body lengths: 30 / 32 / 34 mm
• One 2 mm Height Spacer is included
• An optional second 2 mm Height Spacer extends the 32 → 34 mm configuration
• Spring Retainer adds 3.3 mm to the physical overall assembly length; it is not part of the installed block-body length

Material direction

Ti-6Al-4V Grade 5 titanium combines low mass relative to strength with fast response, strong note separation, controlled low end and direct mechanical feedback.

Compatibility

Fits the following tremolo systems with the standard 3-screw block mounting pattern:

• Floyd Rose® Original and Original Hot Rod: 6-string and 7-string
• Floyd Rose® 1000 Series (Original-style) and Special: 6-string
• Floyd Rose® Non-Fine Tuner
• Schaller LockMeister: 6-string and 7-string
• Schaller Tremolo: classic double-locking model

Mounting-hole spacing: 17 mm between adjacent hole centres; 34 mm between the two outer hole centres.

Not compatible: Floyd Rose® 1000 Series 7-string, Special 7-string, Pro and 1000 Series Pro; Gotoh locking tremolos.

Technical guides

• How to Choose the Correct Tremolo Block Height

Floyd Rose® is a trademark of its respective owner. The name is used for identification only; no affiliation or endorsement is implied.
