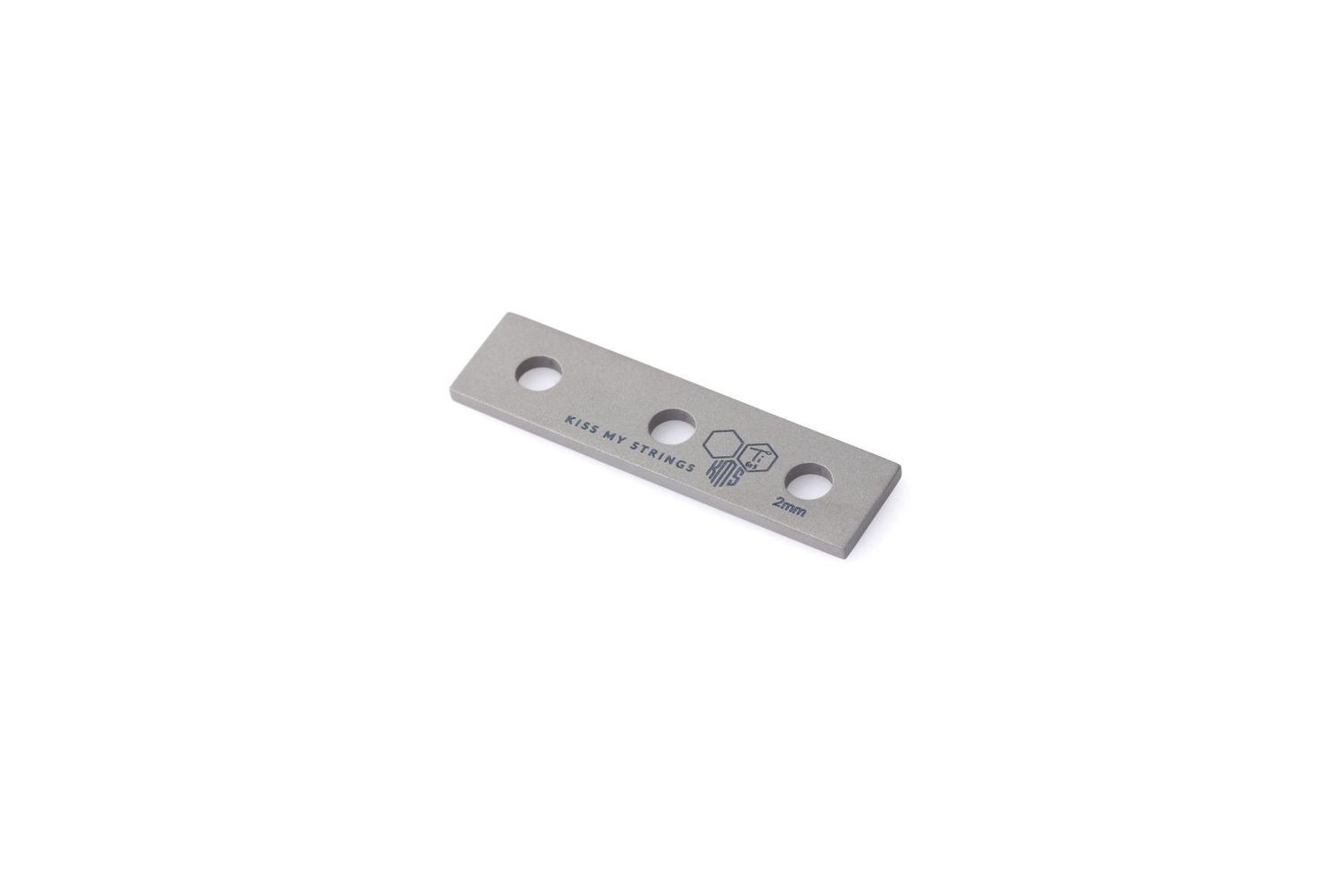

MONOLITH Height Spacer

The MONOLITH Height Spacer adds 2 mm to the installed height of your tremolo block, allowing you to adapt the fit to your guitar without replacing the block.

Height adjustment

• 2 mm height increase per spacer
• Use one spacer for +2 mm or two spacers for +4 mm
• An optional second 2 mm spacer is available via the product option

Technical specifications

• Material: Grade 5 titanium (Ti-6Al-4V)
• Dimensions (L × W × T): 50 × 13 × 2 mm
• Mounting holes: 3 through-holes, Ø 5 mm
• Hole spacing: 17 mm centre-to-centre between adjacent holes
• Outer hole spacing: 34 mm centre-to-centre
• Finish: Titanium Natural

Compatibility

Fits all MONOLITH tremolo blocks and the standard tremolo blocks used in the following systems:

• Floyd Rose® Original and Original Hot Rod: 6-string and 7-string
• Floyd Rose® 1000 Series (Original-style) and Special: 6-string
• Floyd Rose® Non-Fine Tuner
• Schaller LockMeister: 6-string and 7-string
• Schaller Tremolo: classic double-locking model

Mounting-hole spacing: 17 mm between adjacent hole centres; 34 mm between the two outer hole centres.

Not compatible: Floyd Rose® 1000 Series 7-string, Special 7-string, Pro and 1000 Series Pro; Gotoh locking tremolos.

Scope of delivery

One MONOLITH Height Spacer, 2 mm. Select the second-spacer option for two spacers in total. Tremolo block and Spring Retainer are not included.

Technical guide

How to Choose the Correct Tremolo Block Height

Floyd Rose® is a trademark of its respective owner. The name is used for identification only; no affiliation or endorsement is implied.
